WIRELESS LENS CONTROL
Control canon lenses wireless
with the original canon remotes
Canon Digital Zoom & Focus Servo Demand
Learn more
Canon Digital Zoom & Focus Servo Demand
wireless lens control
is compatible with canon lenses
with 20 pin connectors for Canon Digital Zoom & Focus Servo Demand
Compact Design
A compact design plays an important role in many broadcast applications. We have designed WIRELESS LENS CONTROL in such a way that space and weight are saved, especially on the side of the lens.
Dimensions receiver (on the lens):
63 mm x 44 mm x 21 mm

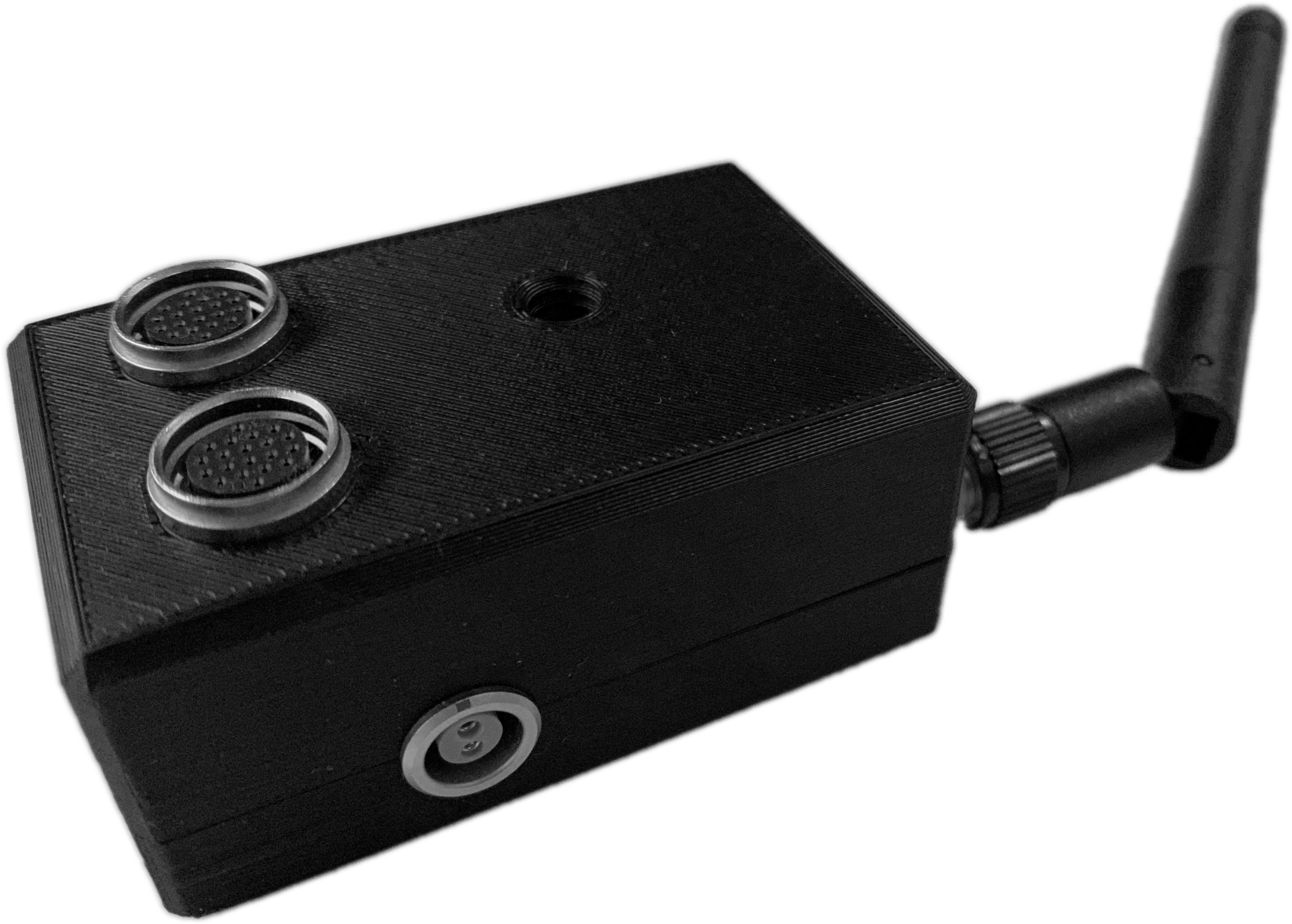

Dimensions transmitter (for the remotes):
65mm x 40mm x 28mm
Dimensions receiver (on the lens):
63 mm x 44 mm x 21 mm
Dimensions transmitter (for the remotes):
65mm x 40mm x 28mm
Long Range
We did not make any compromises when selecting the radio transmission system. WIRELESS LENS CONTROL works in the 2.4 GHz frequency band and uses diversity technology. But unlike traditional W-LAN networks, the FHSS principle (Frequency Hopping Spread Spectrum) offers extremely high transmission security with a high range at the same time, as the data is distributed over a large spectrum. With a clear LOS and little interference, the system can easily cover 3000 ft.
Low Power Consumption

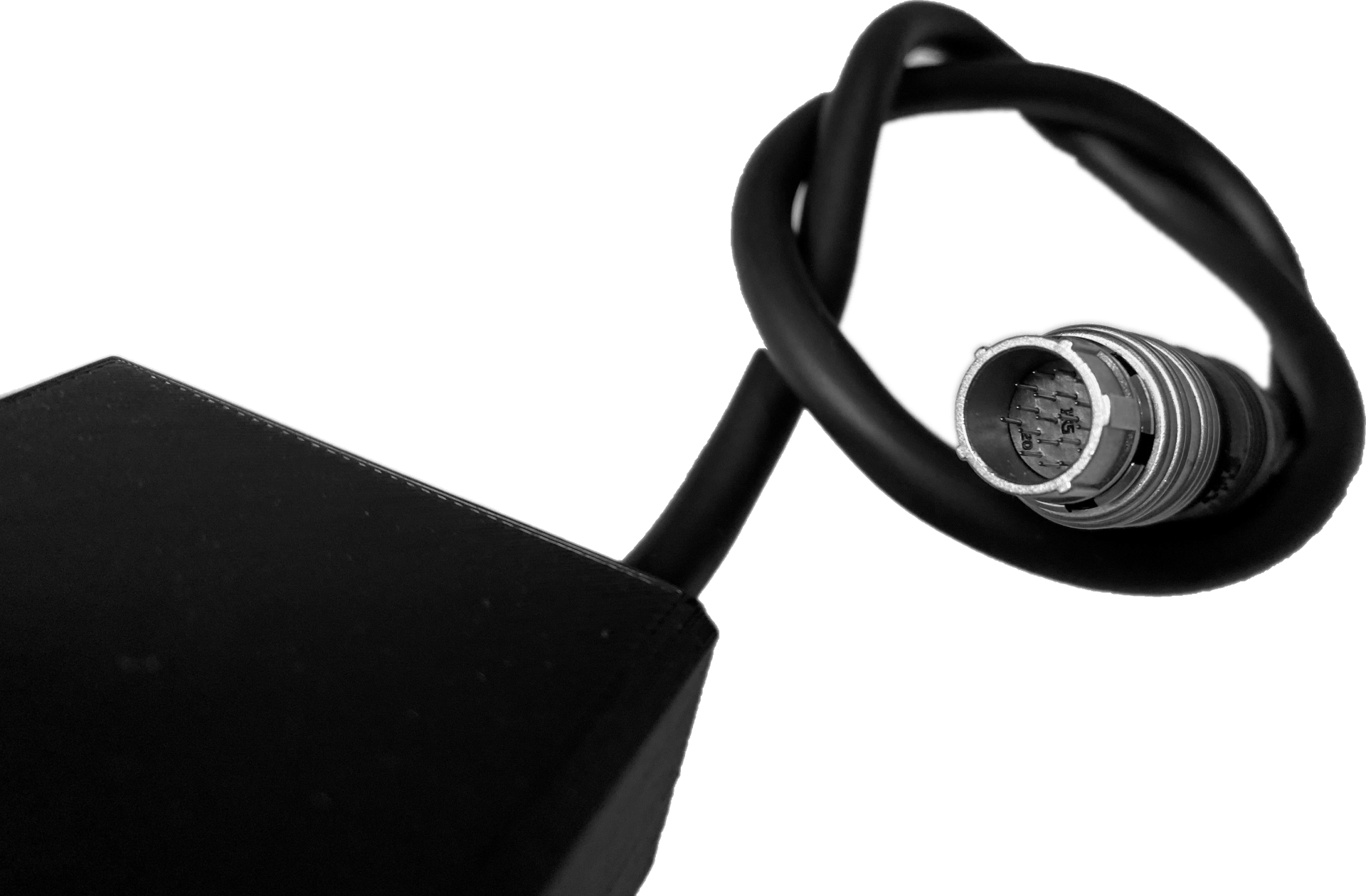

WIRELESS LENS CONTROL needs so little power that the receiver on the side of the lens can be supplied with power directly from the lens. So only the 20 pin plug of the receiver has to be connected to the lens.
On the remote side, either a power supply unit or another power source (10 V - 20 V) can supply the transmitter with power.
On the remote side, either a power supply unit or another power source (10 V - 20 V) can supply the transmitter with power.
Full Telemetry
WIRELESS LENS CONTROL transmits all digital functions
- Canon ZSD-300D (Shuttle Shot, Speed Preset, Frame Preset, RET, REC, Zoomrichtung)
- Canon FPD-400D (Focusrichtung, Focuscharakteristik)
High Accuracy
Compatible Canon lenses typically have 1000 positions that can be approached. WIRELESS LENS CONTROL transmits these 1000 positions precisely.
Low Latency
A fast transfer between remotes and lens is extremely important to be able to work creatively. We were able to reduce the latency of the WIRELESS LENS CONTROL to ~ 0,04 s.
WIRELESS LENS CONTROLwithout lemo power cable
EUR 1.790,-
no VAT included
1 x transmitter
1 x receiver
WIRELESS LENS CONTROL
EUR 1.820,-
no VAT included
1 x transmitter
1 x receiver
1 x cable with lemo connector
POWER SUPPLYwith lemo connector
EUR 65,-
no VAT included
1 x power supply with lemo connector
